APPLICATION

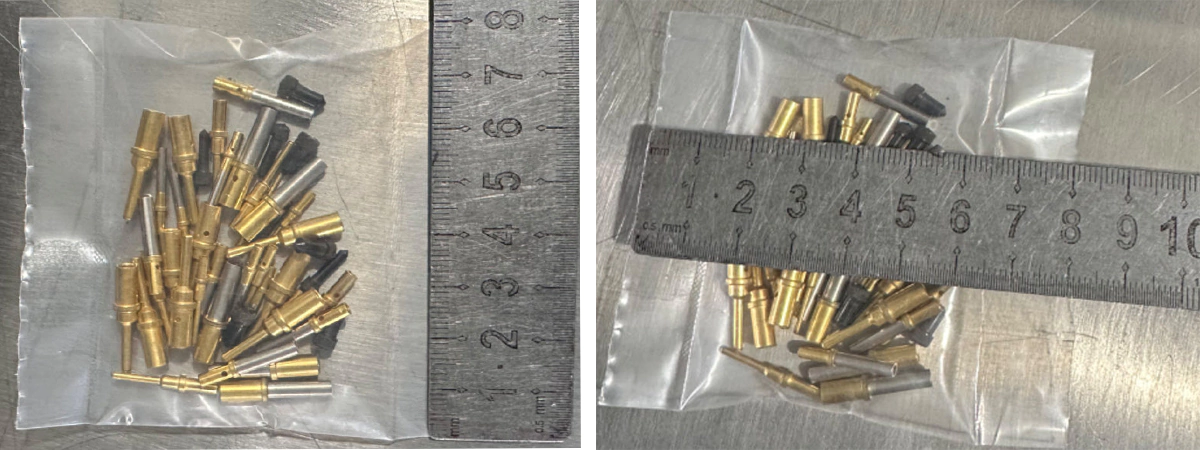

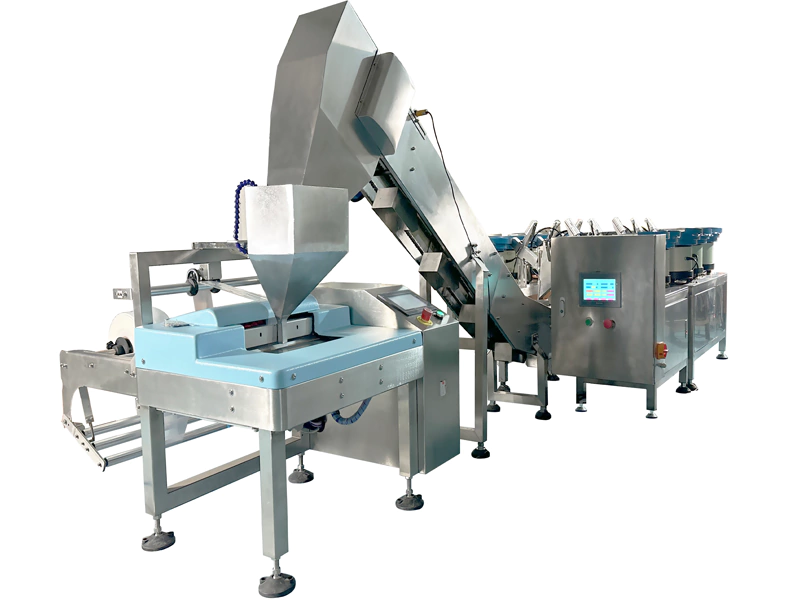

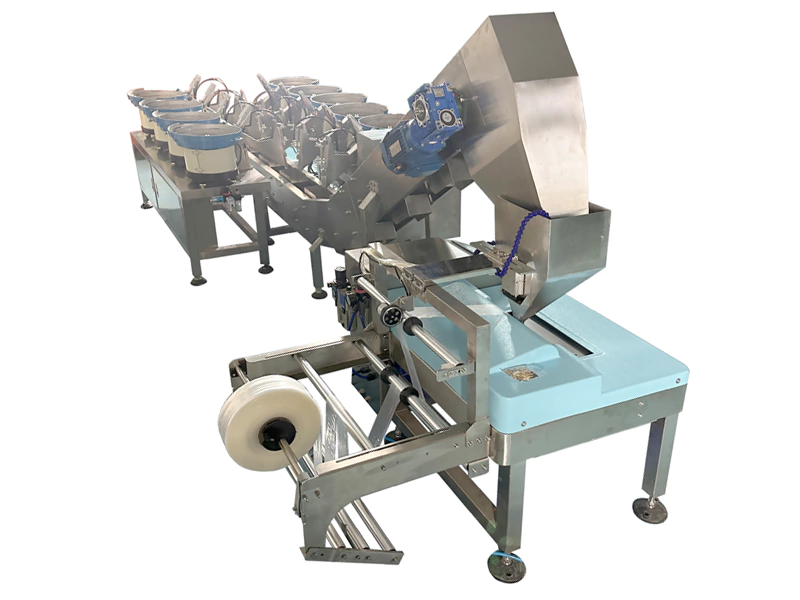

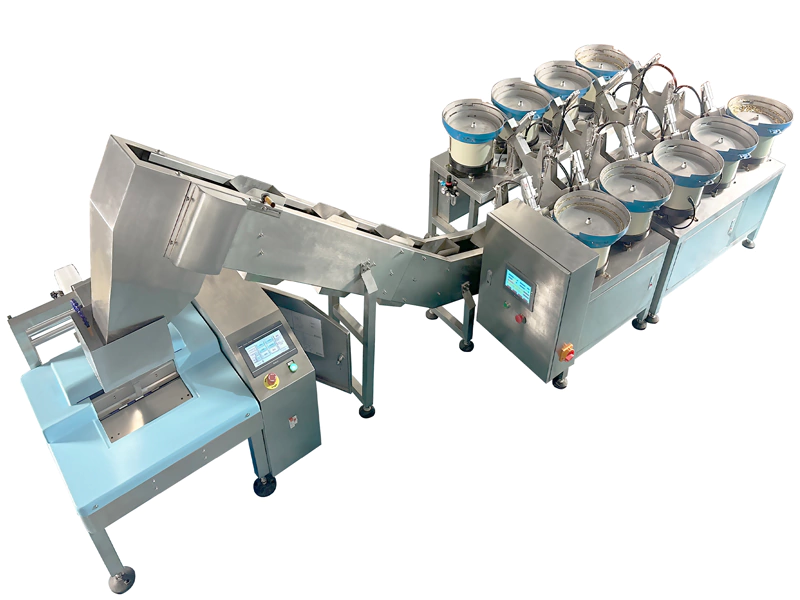

Sleeve film packing machine working with vibrate feeders, using fiber counting, capable of packing different kinds of fittings, like screws, bolts, nuts, hinges, sleeve, handles, bearings etc.
PARAMETERS
| Model | QP-400C9 Tube Film Packing Machine |
| Packing Speed | 4-18 bags / min |
| Language | Multiple languages (please specify when ordering) |
| Air Pressure | 6kg/cm,0.3/min |
| Install Voltage | AC220V |
| Display Size | 7＂color touch screen |
| Bag Size | L=30mm/max,W=60mm/300mm |
| Packing Film Material | PE、Complex Film etc. |
| FilmThickness | 30μ/120μ |
| Material of Contact Parts | SUS304 |
| Material of Crate | SUS304 |
| Machine Power | 700W |
| MachineWeight | 165kg |
| Dimensions (MM) | 1148×880×1170（L×W×H）(bagging machine) |
FEATURES
-

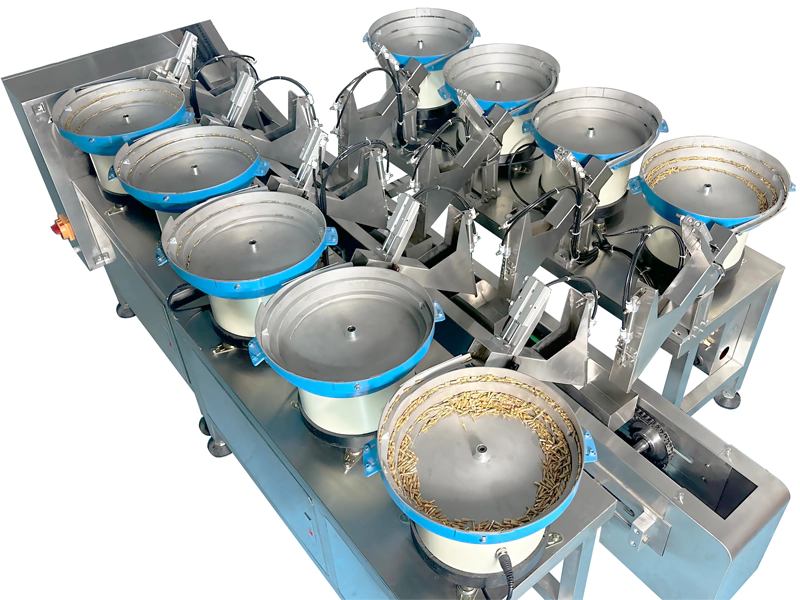

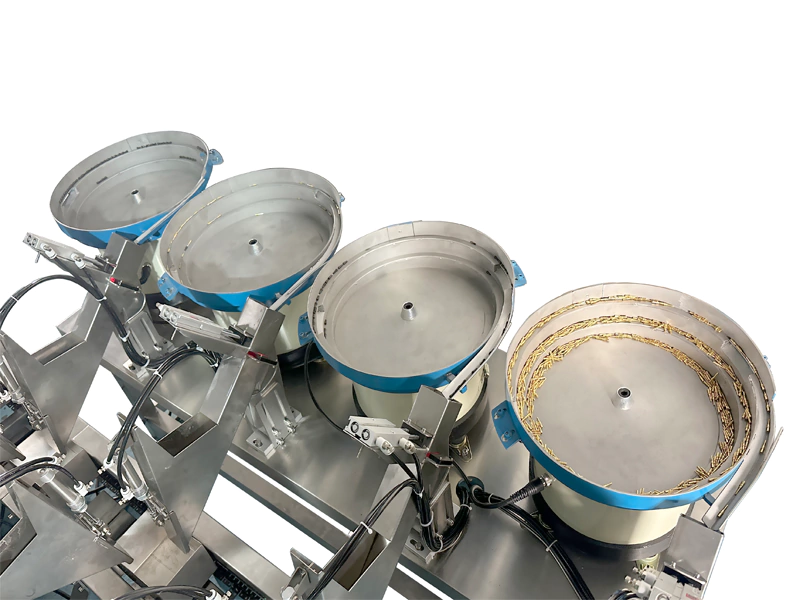

Using Linear Vibrate feeders, visual system with camera, fast speed and high accuracy for counting small fittings.
-
Touch screen, easy operation, multiple language available, customized language accepted.
-
High quality PLC system, each vibrate feeder controlled by independent PLC, it is easy to set for different kinds of products.
-
Independent PID temperature controller, adjustable for various packing materials.
-
Multi-union roll film pulling system make film running more smooth.
-
High quality sealing jaws to make sure bag sealing and cutting good.
-
Machine automatically finish the process of counting, filling, bag opening, sealing and packing.
-
Low loss, labor saving, easy for operation and maintenance.
