Application
Volume cups filling Multi Lanes Stick Packing Machine capable of packing small free flow type granules like sugar, sweetener, coffee granule, salt, spices, seasoning, medicine granules, drink granules, etc.
Parameters
| Model | QP-280KB | QP-560KB |
| Lanes number | 4-6 lanes | 6-12 lanes |
| Bag Length | 50-180mm | 80-350mm |
| Bag Width | 17-30mm | 100-250mm |
| Film Roll Diameter | Max.280mm | Max.560mm |
| Pakaging Rate | 35rounds/min | 35rounds/min |
| Film Width | 50HZ,AC220V,3.5KW | 50HZ,AC220V,5KW |
| Air consumption | 0.8MPA, 0.6m3/min | 0.8MPA, 0.6m3/min |
| Size | 1385*918*2005mm | 1680*1300*3005mm |
| Weight | 400kg | 450kg |
Features
- Touch screen, easy operation, multiple language available, customized language accepted.
- With servo motor driving, smoonth, stable performance.
- PLC system, easier for setting and settings adjustment.
- Independent PID temperature controller, adjustable for various packing materials.
- Round cutter for spliting the film roll, ensure each lane with equal width.
- Fully automatic, can finish the process of filling, metering, bag forming, date printing, sealing and packing.
- Food grade SS304 steel body, stain proof, easier clean and maintenance.

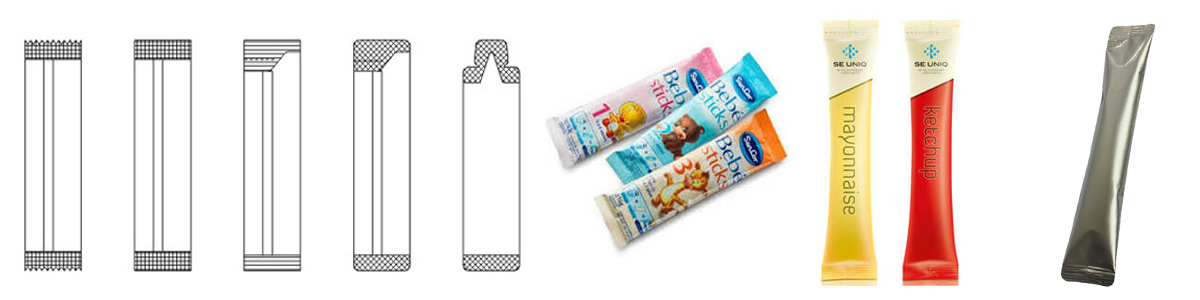

Sample bags
