Application
Spout Pouch Packaging Machine working with different kind of dosing system, capable of packing different kinds of granule, powder, liquid/sauce products like puffed food, potato chips, coffee bean, crispy rice, jelly, candy, pistachios, glutinous rice balls, chocolate, pet food, cat food, dog food, hardware, apple slices, milk powder, flour, coffee powder, chili powder, spice powder, soap powder, curry powder, cream, paste, sauce, milk, butter, water, oil, vinegar, liquid seasoning，juice, tomato paste, ketchup, hot sauce, etc.
Parameters
|
Model |
QP-R200 |
QP-R250 |
|
Pouches stype |
3-side, four edge-sealing bag, self-reliance bag, handbag, spout bags, zipper bag, compound bag, etc. |
|
|
Pouch size |
W：70-200 |
100-250 |
|
Filling range |
10-1000g |
20-2500g |
|
Packing speed |
40-60bag/min（speed is depends on the product natures） |
|
|
Average precision |
≤ ±1% |
|
|
Total power |
2.5KW |
|
|
Machine dimensions |
1900mm X 1570mm X 1700mm（L*W*H） |
1900mm X 1570mm X 1700mm（L*W*H） |
|
Work steps |
deliver bag→ coding →opening →filling 1 →filling 2→ auxiliary→ exhaust →heat sealing→ forming |
|
Features
-
Capable of working with different kinds of dosing system, capable of packing a wide range of products.
-
Capable of working with a range of pouches.
-

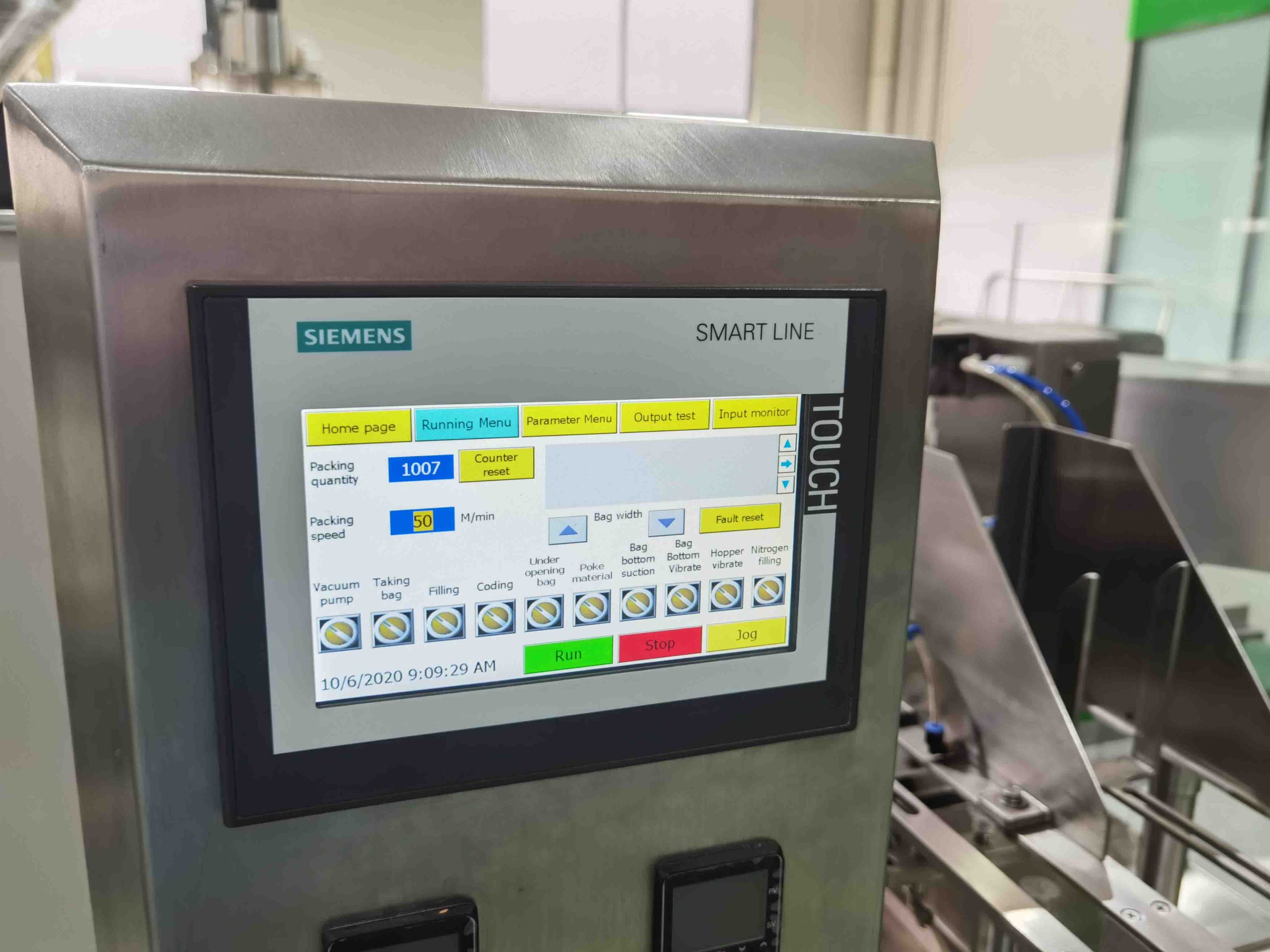

Easy to operate, With PLC controller, HMI system makes easy operation.
-
One step of changing bag size on screen, then the machine will do the adjustment accordingly.
-
Full automatically finish all steps like feeding, bag picking, filling, closing, sealing, date coding.
-
Perfect prevention system: when the bag is not opened or not opened completely, it will be non-filling and non-sealing, so the bags can be reused and the product is not wasted thus save the production cost.
-
The product contact parts are made of food grad SUS304 to ensure sanitation and safety.
-
High quality plastic bearings, no need to oil, no contamination.
-
Vacuum generator, low consumption, high efficiency, easy to clean, and longer useful life.
Sample bags
