The Benefits
Continuous volumetric cup dosing, quick setup and change
Heat sealing tag system without glue

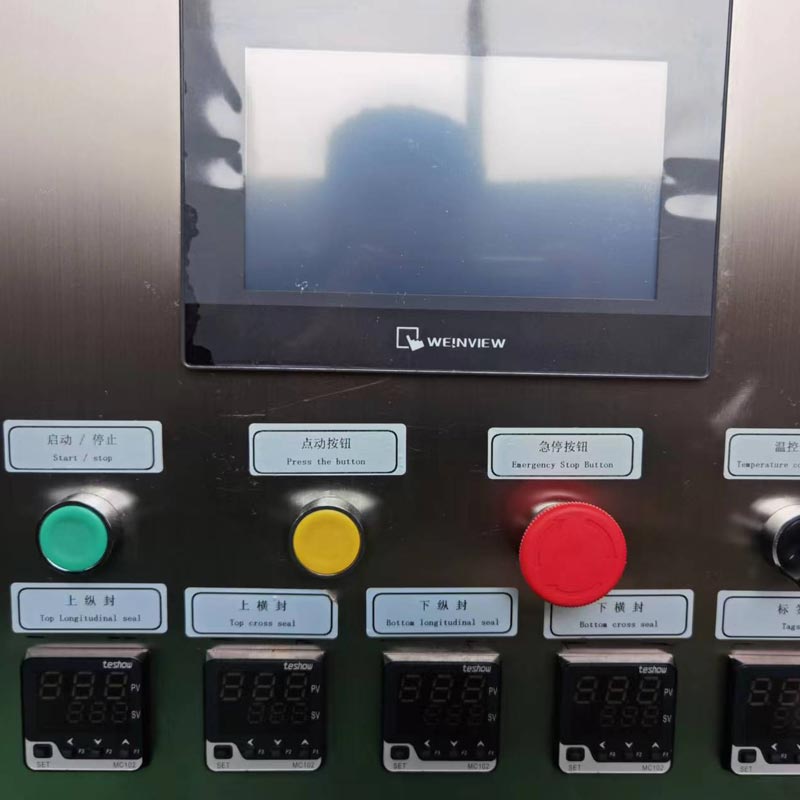

PLC and touch panel control
Compact design, easy to replace and maintain
Low air consumption
Economical price
Short delivery time
Capacity up to 90 bags/min
3 Working modes(single chamber tea bag with envelope, only single chamber tea bag with/without string and tag, ).
Auger filler(optional)
Chute knocking device(optional)
Single chamber tea bag machine
It’s the standard and entry-level single chamber tea bag machine that suited to smaller production runs, thanks to it’s reduced footprint and packaging speed of up to 90 bags per minute. In order to meet the diversified needs, the engineers designed three versions for customer’s option: both inner and outer bag, inner bag with string and label, only the inner bag, it was well accepted by customers in the market due to it’s exceptional versatility in terms of bag size, it’s tailored depending on the density of packing material and weight of each bag, realized one machine multiple bag sizes. Controlled by PLC and touch screen, you can set your machine parameters easily through one touch, like working speed, temperature.

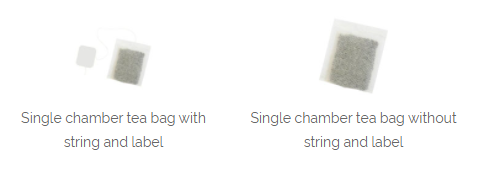

Packaging styles
Technical data
| Model | QULI-AP | QULI-IP | QULI-NP |
| Capacity | 30-60 bags/min | 40 bags/min | 50 bags/min |
| Measurement | Standard: Volumetric cupOptional: Auger filler | ||
| Inner bag | Yes | Yes | Yes |
| Outer bag | Yes | No | No |
| Thread and tag | Yes | Yes | No |
| Packing material | Inner: Natural paperOuter: Laminated film(suitable for heat sealing) | ||
| Packing method | 3-Side heat sealing | ||
| Compressed air | 160L/min(6 bar) | ||
| Power | 1-P, 220VAC, 50/60Hz | 1-P, 220VAC, 50/60Hz | 1-P, 220VAC, 50/60Hz |
| Weight | 490KG | 390KG | 350KG |
Layout
Accessories
–Collar format.
–Code printer.
–Auger filler(suited to powder tea).
