Application

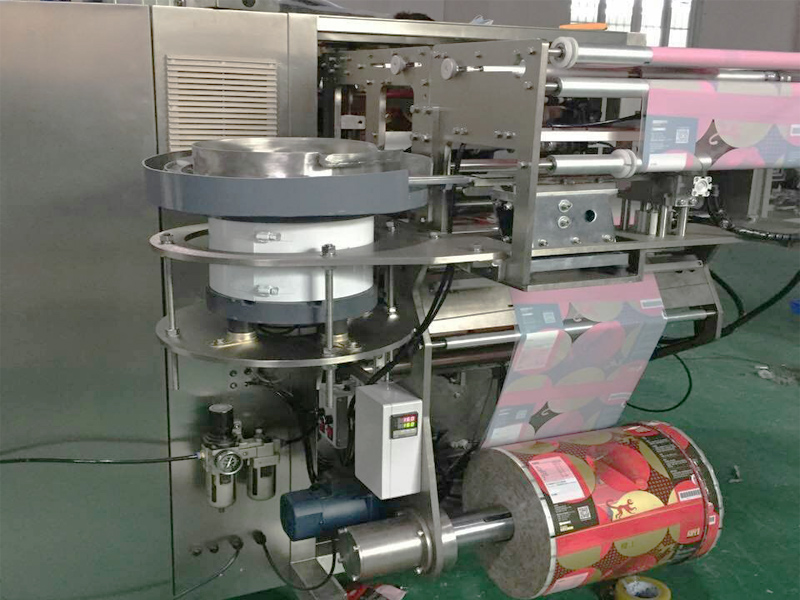

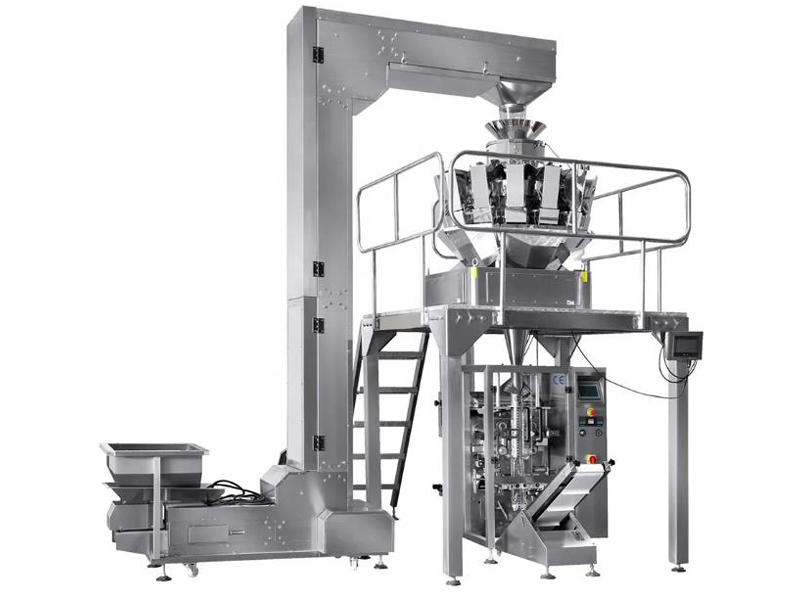

Coffee beans packing machine with Air degassing valve applicator, capable of packing roasted coffee beans, which needs to leak air from the package inside.
Parameters
| Model | QP-420 | QP-520 | QP-730 | QP-900 | QP-1080 | QP-1200 |
| Film Thickness | 0.04-0.12mm | 0.04-0.12mm | 0.04-0.12mm | 0.04-0.12mm | 0.04-0.12mm | 0.04-0.12mm |
| Bag Length | 80-300mm | 80-350mm | 100-500mm | 100-600mm | 100-800mm | 100-1000mm |
| Bag Width | 60-200mm | 100-250mm | 180-350mm | 260-430mm | 290-505mm | 290-580mm |
| Film Roll Diameter | Max.350mm | Max.350mm | Max.350mm | 400mm | 400mm | 400mm |
| Pakaging Rate | 5-60bag/min | 5-60bag/min | 5-60bag/min | 5-60bag/min | 5-60bag/min | 5-60bag/min |
| Film Width | Max.420mm | Max.520mm | Max.720mm | Max.900mm | Max.900mm | Max.1200mm |
Features
-
Multi language operation system with touch screen.
-

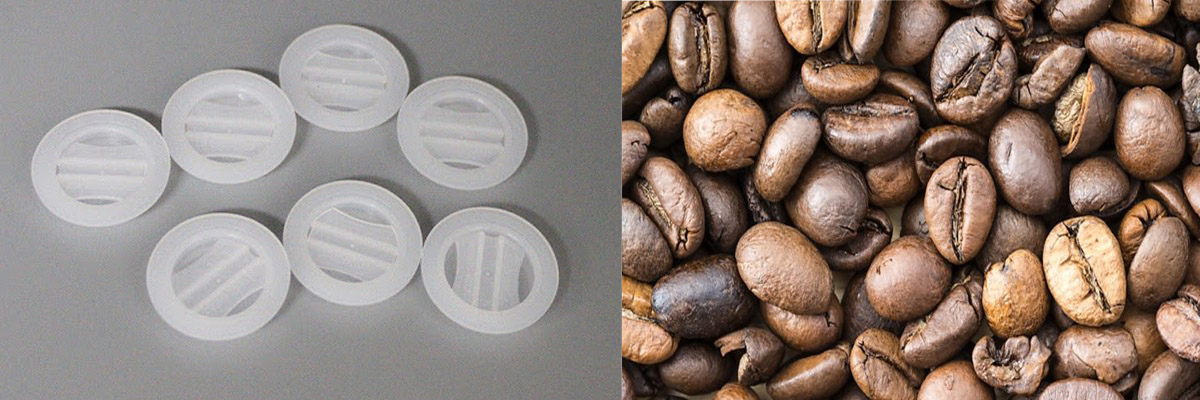

With Air degassing valve applicator, capable of packing products which need to degass air from inside.
-
High quality PLC control, stable performance with simple setting on the screen.
-
With pre-set parameters storage function, capable of restore 99 sets of parameters, easy for changing products.
-
Independent temperature control system, make sure high accurate temperature for each kind of packaging materials.
-
Film pulling system controlled by step motor, make film running more smoothly.
-
Using double servo film-dragging structure, enable bag forming for perfect bag shape.
-
Sophisticated sealing set ensures bag sealing and cutting consistency.
-
Automatically finish the process of feeding, filling, bag forming, date printing, sealing.
-
Food grad stainless steel body material, easy for operation and maintenance.
Sample bags
