Application

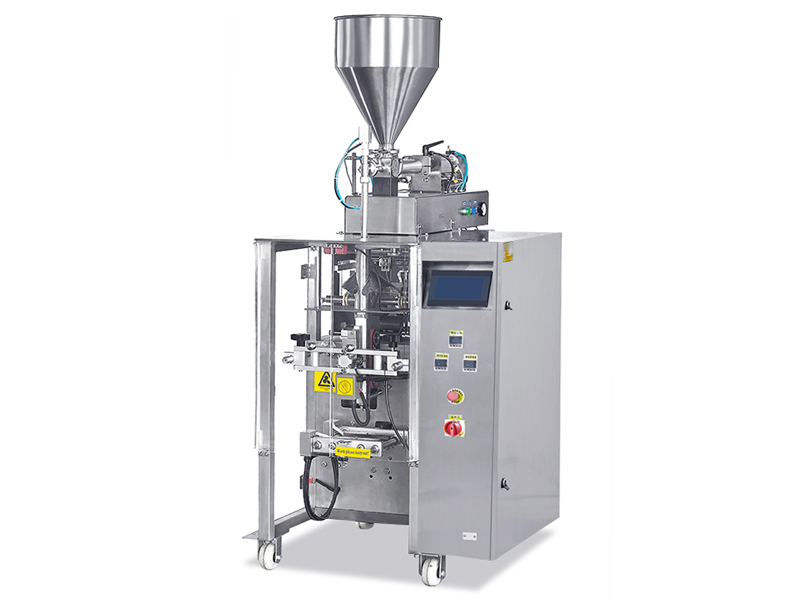

Oil Packaging Machine with piston pump capable of packing different kinds of liquid/sauce products like oil, water, milk, hot sauce, ketchup, Vinegar, the liquor, cream, paste, sauce, milk, butter, water, oil, vinegar, liquid seasoning，juice, tomato paste etc.
Parameters
|
Model |
QP-420 |
QP-520 |
QP-730 |
QP-900 |
QP-1080 |
QP-1200 |
|
Film Thickness |
0.04-0.12mm |
0.04-0.12mm |
0.04-0.12mm |
0.04-0.12mm |
0.04-0.12mm |
0.04-0.12mm |
|
Pouch Length |
80-300mm |
80-350mm |
100-500mm |
100-600mm |
100-800mm |
100-1000mm |
|
Pouch Width |
60-200mm |
100-250mm |
180-350mm |
260-430mm |
290-505mm |
290-580mm |
|
Film Roll Diameter |
≤350mm |
≤350mm |
≤350mm |
≤400mm |
≤400mm |
≤400mm |
|
Packaging speed |
5-60bpm |
5-60bpm |
5-60bpm |
5-60bpm |
5-60bpm |
5-60bpm |
|
Film Width |
≤420mm |
≤520mm |
≤720mm |
≤900mm |
≤900mm |
≤1200mm |
Features
-
7inch touch screen, easy operation and multiple language system.
-
PLC control system, reliable performance and easy for parameters setting.
-
With a memory function for storage 99 sets of parameters, easy to pre-set parameters for different products.
-
PID temperature controller, Accurate temperature control for various packing materials.
-
Film pulling system controlled by step motor, make film running more smooth.
-
Using double servo film-dragging structure, enable bag forming for perfect bag shape.
-
Sophisticated sealing set ensures bag sealing and cutting consistency.
-
Automatically finish the process of feeding, filling, bag forming, date printing, sealing.
-
Food grad stainless steel body material, easy for operation and maintenance.
Sample bags
