Application
multiple powder mixed packaging machine line can pack milk powder, flour, coffee powder, chili powder, spice powder, soap powder, curry powder, washing powder, garlic powder, onion powder, protein powder, seasoning powder etc.
Parameters
| Model | QP-420 | QP-520 | QP-730 | QP-900 | QP-1080 | QP-1200 |
| Film Thickness | 0.04-0.12mm | 0.04-0.12mm | 0.04-0.12mm | 0.04-0.12mm | 0.04-0.12mm | 0.04-0.12mm |
| Bag Length | 80-300mm | 80-350mm | 100-500mm | 100-600mm | 100-800mm | 100-1000mm |
| Bag Width | 60-200mm | 100-250mm | 180-350mm | 260-430mm | 290-505mm | 290-580mm |
| Film Roll Diameter | Max.350mm | Max.350mm | Max.350mm | 400mm | 400mm | 400mm |
| Pakgaging Rate | 5-60bag/min | 5-60bag/min | 5-60bag/min | 5-60bag/min | 5-60bag/min | 5-60bag/min |
| Film Width | Max.420mm | Max.520mm | Max.720mm | Max.900mm | Max.900mm | Max.1200mm |
Features
-
7inch touch screen, easy operation and multiple language system.
-
PLC control system, reliable performance and easy for parameters setting.
-
With a memory function for storage 99 sets of parameters, easy to pre-set parameters for different products.
-
PID temperature controller, Accurate temperature control for various packing materials.
-
Film pulling system controlled by step motor, make film running more smooth.
-
Using double servo film-dragging structure, enable bag forming for perfect bag shape.
-
Sophisticated sealing set ensures bag sealing and cutting consistency.
-
Automatically finish the process of feeding, filling, bag forming, date printing, sealing.
-
Food grad stainless steel body material, easy for operation and maintenance.

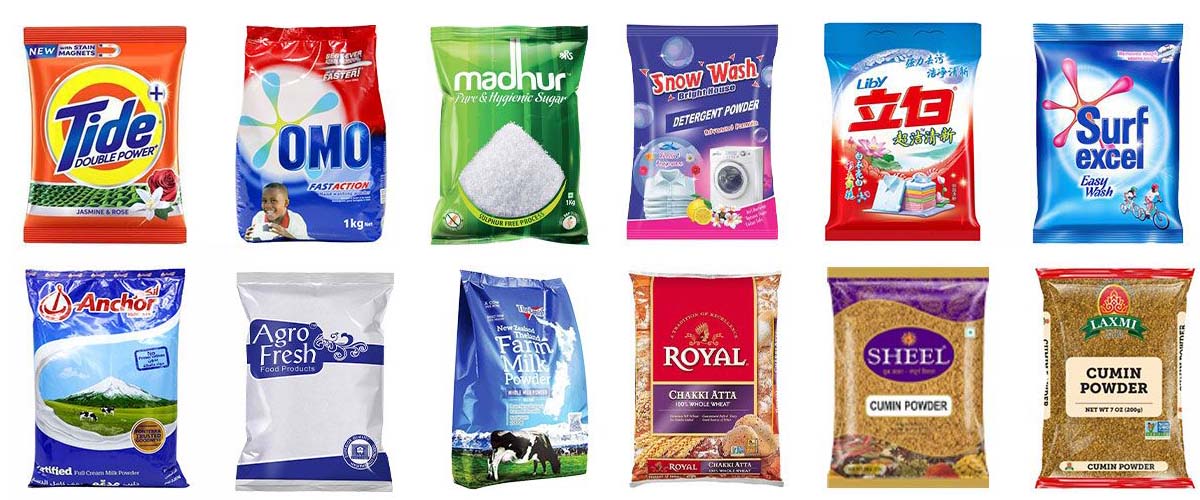

Sample bags
