Application

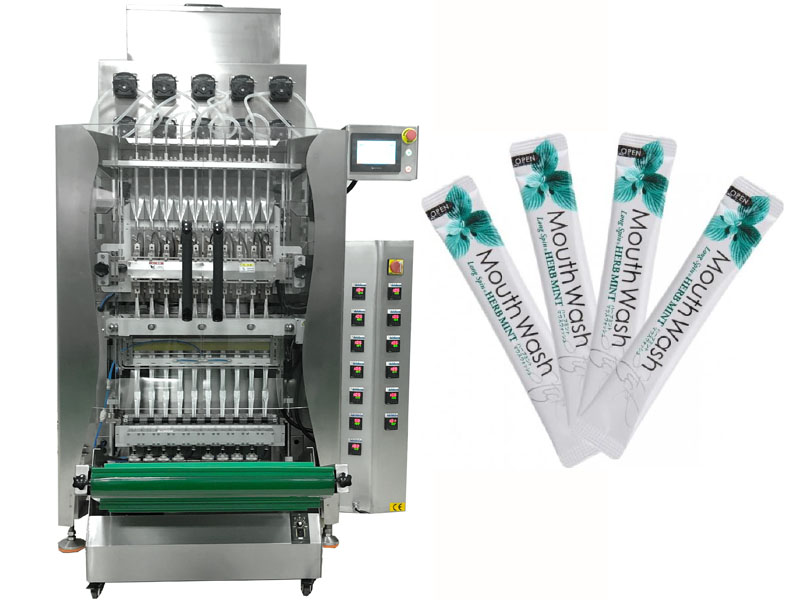

10 Lanes round stick Packing Machine comes with magnetic pump filling, capable of packing all kinds of liquid sauce products like mouth wash liquid, honey, shampoo, drink, the soy sauce, the vinegar, cream, paste, sauce, milk, butter, water, oil, vinegar, juice, tomato paste, ketchup, hot sauce, milk, cream, ketchup, oil, etc
Parameters
| Model | QP-280YB | QP-560YB |
| Lanes number | 4-6 lanes | 6-12 lanes |
| Bag Length | 50-180mm | 80-350mm |
| Bag Width | 17-30mm | 100-250mm |
| Film Roll Diameter | Max.280mm | Max.560mm |
| Pakaging Rate | 35rounds/min | 35rounds/min |
| Film Width | 50HZ,AC220V,3.5KW | 50HZ,AC220V,5KW |
| Air consumption | 0.8MPA, 0.6m3/min | 0.8MPA, 0.6m3/min |
| Size | 1385*918*2005mm | 1680*1300*3005mm |
| Weight | 400kg | 450kg |
Features
- Touch screen, easy operation, multiple language available, customized language accepted.
- High quality PLC system, make sure the machine with reliable performance and easy setting.
- With a memory function for parameters storage
- Independent PID temperature controller, adjustable for various packing materials.
- servo motor roll film pulling system make film running more smooth.
- Machine automatically finish the process of filling, metering, bag forming, date printing, sealing and packing.
- Low loss, labor saving, easy for operation and maintenance.
- Panasonic servo motor pulling bag film, air cylinder for bag horizontal seal, work faster and more stablezontal drawing film,more stable and faster.
Sample bags
