Application
Rotary doy pack machine with piston pump feeding, can pack liquid/sauce products like oil, ketchup, milk, hot sauce, honey, butter etc similar products.
Parameters
| Model | QP-R200 | QP-R250 |
| Packing material | 3-side, four edge-sealing bag, self-reliance bag, handbag, spout bags, zipper bag, compound bag, etc | |
| size | W：70-200 | 100-250 |
| Filling range | 10-1000g | 20-2500g |
| Packing speed | 40-60bag/min（speed is depends on the product natures） | |
| Average precision | ≤ ±1% | |
| Total power | 2.5KW | |
| Dimensions | 1900mm X 1570mm X 1700mm（L*W*H） | 1900mm X 1570mm X 1700mm（L*W*H） |
| Work steps | giving bag→coding →opening →filling 1 →filling 2→ auxiliary→ exhaust→heat sealing→ .forming and output product | |
Features
-
With different kind of dosing system, capable of packing a wide range of products.
- Capable of working with a range of pouches.
- Easy to operate, With PLC controller, HMI system makes easy operation.
- Easy to adjust bag size on the screen, then the machine will do the adjustment accordingly
- High automation, automatic feeding, bag picking, filling, closing, sealing, date coding.
- Perfect prevention system: when the bag is not opened or not opened completely, it will be non-filling and non-sealing, so the bags can be reused and the product is not wasted thus save the production cost.
- The product contact parts are made of food grad SUS304 to ensure sanitation and safety.
- High quality plastic bearings, no need to oil, no contamination.
- Vacuum generator, low consumption, high efficiency, cleaness, and long useful life.

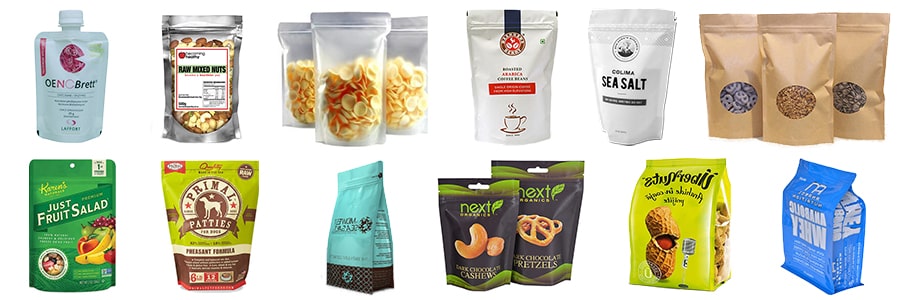

Sample bags
