Application

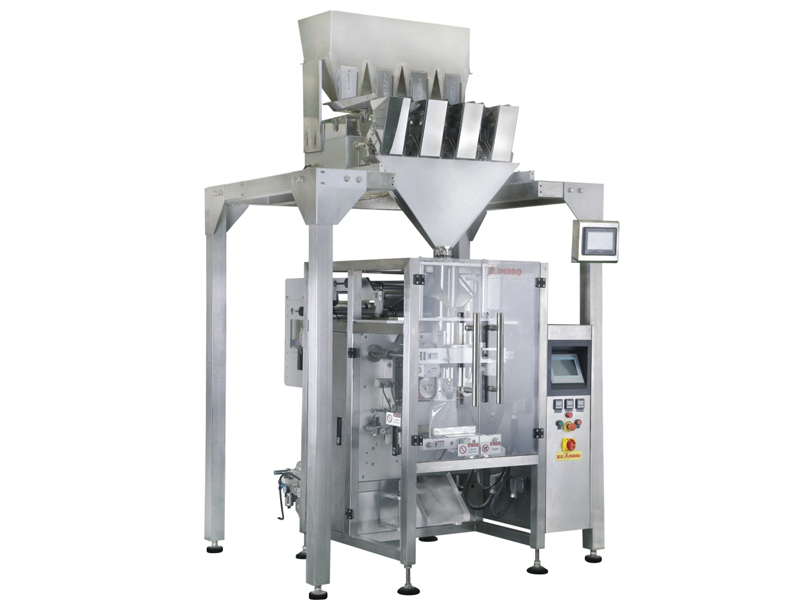

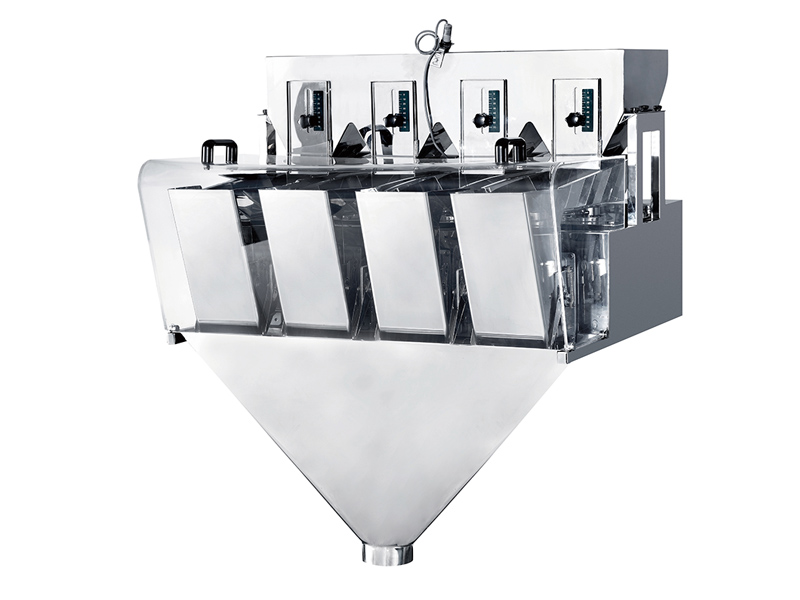

Vertical packing machine with linear weigher filling for packing free flow type granule products like salt, sugar, rice, sunflower seed, peanut, beans, nuts, pistachio, peas, cereals, detergent powder etc.
Parameters
| Model | QP-420 | QP-520 | QP-730 | QP-900 | QP-1080 | QP-1200 |
| Film Thickness | 0.04-0.12mm | 0.04-0.12mm | 0.04-0.12mm | 0.04-0.12mm | 0.04-0.12mm | 0.04-0.12mm |
| Bag Length | 80-300mm | 80-350mm | 100-500mm | 100-600mm | 100-800mm | 100-1000mm |
| Bag Width | 60-200mm | 100-250mm | 180-350mm | 260-430mm | 290-505mm | 290-580mm |
| Film Roll Diameter | Max.350mm | Max.350mm | Max.350mm | 400mm | 400mm | 400mm |
| Pakaging Rate | 5-60bag/min | 5-60bag/min | 5-60bag/min | 5-60bag/min | 5-60bag/min | 5-60bag/min |
| Film Width | Max.420mm | Max.520mm | Max.720mm | Max.900mm | Max.900mm | Max.1200mm |
Sample bags
