Application
Inclined Packing Machine For Garlic QP420C working with multi heads weigher, capable of packing fragile products like garlic, vegetable, fresh potato, fresh tomato, small cake, vegetable salad, etc.
Parameters
| Model | QP-420 | QP-520 | QP-730 | QP-900 | QP-1080 | QP-1200 |
| Film Thickness | 0.04-0.12mm | 0.04-0.12mm | 0.04-0.12mm | 0.04-0.12mm | 0.04-0.12mm | 0.04-0.12mm |
| Bag Length | 80-300mm | 80-350mm | 100-500mm | 100-600mm | 100-800mm | 100-1000mm |
| Bag Width | 60-200mm | 100-250mm | 180-350mm | 260-430mm | 290-505mm | 290-580mm |
| Film Roll Diameter | Max.350mm | Max.350mm | Max.350mm | 400mm | 400mm | 400mm |
| Pakaging Rate | 5-60bag/min | 5-60bag/min | 5-60bag/min | 5-60bag/min | 5-60bag/min | 5-60bag/min |
| Film Width | Max.420mm | Max.520mm | Max.720mm | Max.900mm | Max.900mm | Max.1200mm |
Features
-
Multi language operation system with touch screen.
-
High quality PLC control, stable performance with simple setting on the screen.
-
With pre set parameters storage function, capable of restore 99 sets of parameters, easy for changing products.
-
Independent temperature control system, make sure high accurate temperature for each kind of packaging materials.
-
With step motor driving the film delivery system, running smooth and stable.
-
High quality sealing set to ensure the bag sealing and cutting clean and good looking.
-
High automatic level, auto finishing al the steps of feeding, filing, bagging, date coding, etc.
-
Stainless steel 304 body material, stain proof, good for maintenance.

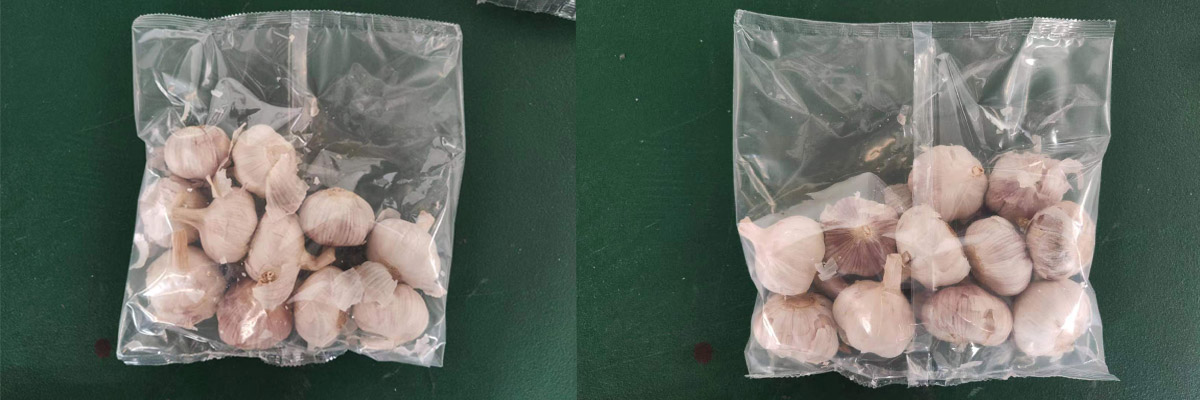

Sample bags
