The high productivity single chamber dip tea bag packing machine, it can pack tea or similar products like herbs and fruits in single chamber tea bags, equips with continuous flow doser, which makes the capacity up to 120 bags per min. Moreover, it has the function of automatic pre-counting and grouping, especially design for enterprises with large production demand.
The Benefits
Continuous volumetric cup dosing device, quick setup and change
Optional vibrating feeder special for light herbs or non-free-flowing products
Modular design, easy to replace and maintain
PLC and touch panel control
Reduced needs for spare parts
Optional heat sealing tag system
Capacity up to 120 bags/min
With function of automatically pre-counted tea bags into carton
Easy to connect with end-of-line equipment, allows customers to benefit from final diversified packaging
High speed single chamber tea bag machine
QULI-S120 is the new packging solution specially designed for the packaging of heatsealed single chamber tea bag with or without string and label, suited for pharmaceutical, health care, food and other industries such as herbs, tea or similar products. Full integration of this equipment enables single overall process control covering each step from filling, bag forming, string and tag to sealing, it uses modular and easily accessible design makes the system extremely user-friendly, easy operation. High-quality components guarantee a long life service and outstandingly efficient handling, as well as longer maintenance intervals.
Another advatage of QULI-S120 is: it requires little floor space and extremely economical, it has the function of automatic counting and grouped tea bag into a carton box as preset quantity. As we all know, more output in less time is important for profitability, you can even enjoy greater productivity up to 120 bags per minute with this type of machine.
Technical data
| Model | QULI-S120 |
| Capacity | 120 bags/min |
| Bag size | 62.5 * 50mm |
| Max.Dosage | 6 cm³ |
| Paper width | 125mm |
| Tag | 28 * 24mm |
| Thread | 210mm |
| Grouping | 25/50/100 30/60 20/40 |
| Power | 380V, 1.5KW |
| Weight | G.weight: 800Kg N.weight: 680KW |
| Dimensions | 1682 * 1010 * 2116mm |

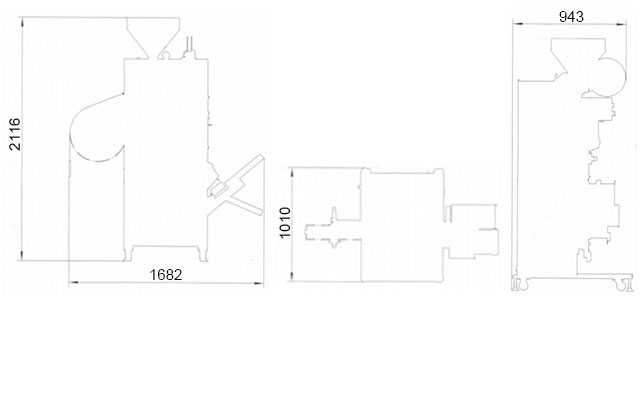

Layout
