Application

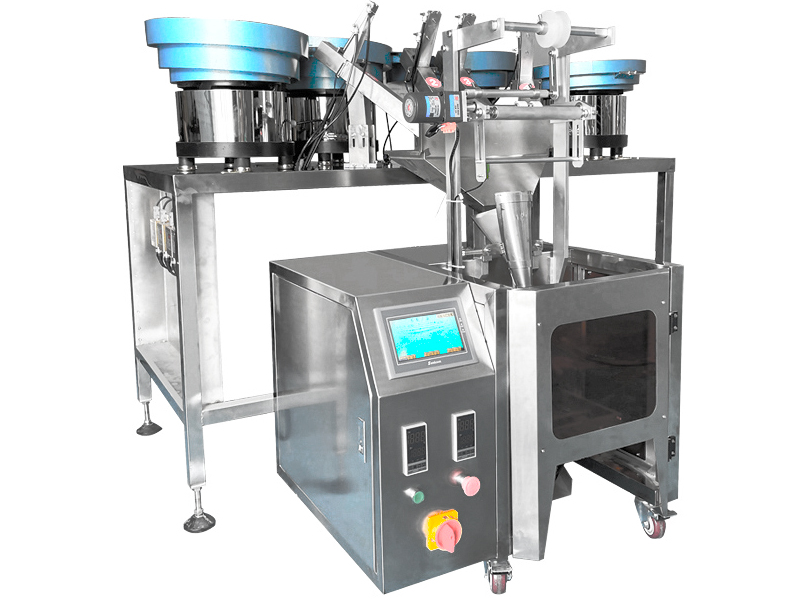

Furniture fittings counting packing machine with fiber sensor counting, capable of counting packing different kinds of furniture fittings, like screws, bolts, nuts, hinges, sleeve, handles, bearings etc.
Parameters
| Model | QP-220B | QP-320B | QP-420B | QP-520B |
| Film Thickness | 0.04-0.08mm | 0.04-0.12mm | 0.04-0.12mm | 0.04-0.12mm |
| Bag Length | 40-160mm | 50-250mm | 100-300mm | 100-330mm |
| Bag Width | 40-100mm | 40-150mm | 75-200mm | 90-250mm |
| Pakaging Rate | 5-60bag/min | 5-60bag/min | 5-55bag/min | 5-20bag/min |
| Film Width | Max.220mm | Max.320mm | 150-Max.420mm | Max.520mm |
| Machine size | 600*600*1600mm | 800*800*1600mm | 1100*1200*1700mm | 1200*1300*1800mm |
Features

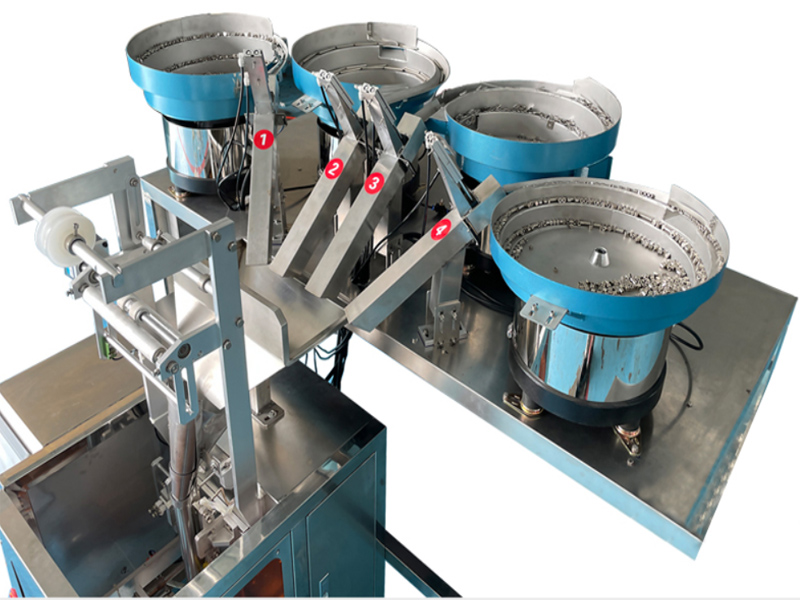

- Using Vibrate feeders, and counting sensors, capable of packing different kind of fittings.
- Touch screen, easy operation, multiple language available, customized language accepted.
- High quality PLC system, each vibrate feeder controlled by independent PLC, it is easy to set for different kinds of products.
- With a memory function for storage ten sets of parameters. easy to pack different kinds of products without resetting.
- Independent PID temperature controller, adjustable for various packing materials.
- Multi-union roll film pulling system make film running more smooth.
- Using servo film-dragging structure, enable stable bag forming for perfect bag shape.
- High quality sealing jaws to make sure bag sealing and cutting good.
- Machine automatically finish the process of filling, metering, bag forming, date printing, sealing and packing.
- Low loss, labor saving, easy for operation and maintenance.

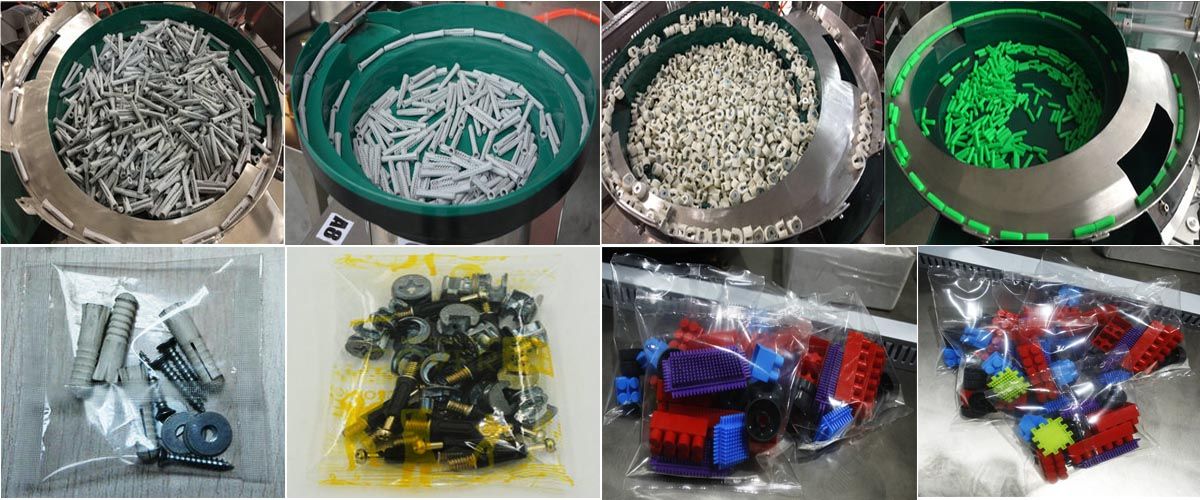

Sample bags
