Application

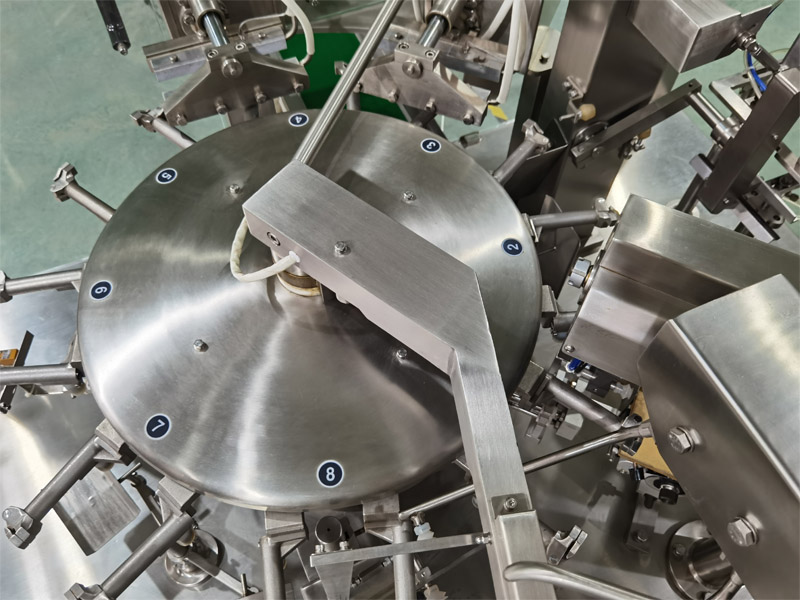

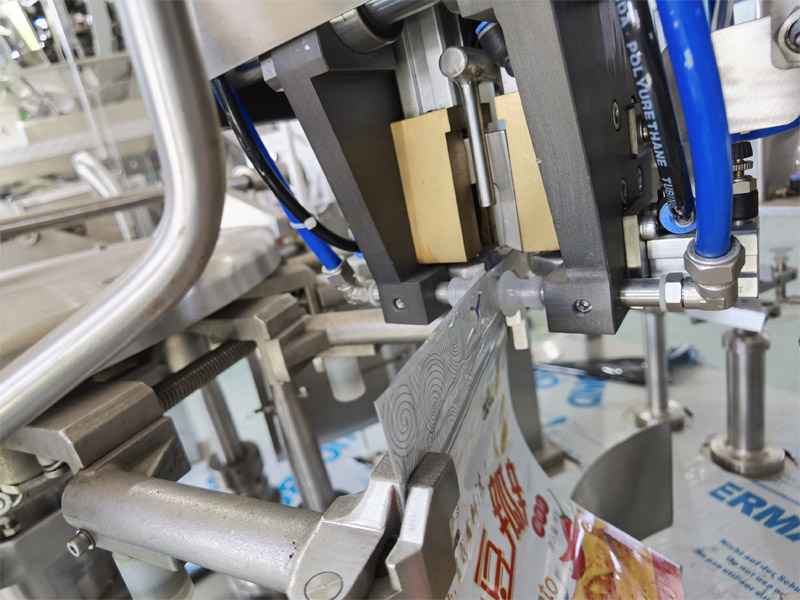

Rotary pre made pouch packing machine with multi heads weigher dosing, suitable for packing granule products like puffed food, potato chips, sugar, salt, rice ,coffee bean, crispy rice, jelly, candy, pistachios, glutinous rice balls, chocolate, pet food, cat food, dog food, hardware, apple slices, banana chips etc.
Parameters
| Model | QP-R200 | QP-R250 |
| Packing material | 3-side, four edge-sealing bag, self-reliance bag, handbag, spout bags, zipper bag, compound bag, etc | |
| size | W：70-200 | 100-250 |
| Filling range | 10-1000g | 20-2500g |
| Packing speed | 40-60bag/min（speed is depends on the product natures） | |
| Average precision | ≤ ±1% | |
| Total power | 2.5KW | |
| Dimensions | 1900mm X 1570mm X 1700mm（L*W*H） | 1900mm X 1570mm X 1700mm（L*W*H） |
| Work steps | giving bag→coding →opening →filling 1 →filling 2→ auxiliary→ exhaust→heat sealing→ .forming and output product | |
Features
-
With different kind of dosing system, capable of packing a wide range of products.
-
Capable of working with a range of pouches.
-
Easy to operate, With PLC controller, HMI system makes easy operation.
-
Easy to adjust bag size on the screen, then the machine will do the adjustment accordingly
-
High automation, automatic feeding, bag picking, filling, closing, sealing, date coding.
-
Perfect prevention system: when the bag is not opened or not opened completely, it will be non-filling and non-sealing, so the bags can be reused and the product is not wasted thus save the production cost.
-
The product contact parts are made of food grad SUS304 to ensure sanitation and safety.
-
High quality plastic bearings, no need to oil, no contamination.
-
Vacuum generator, low consumption, high efficiency, cleaness, and long useful life.
Sample bags
