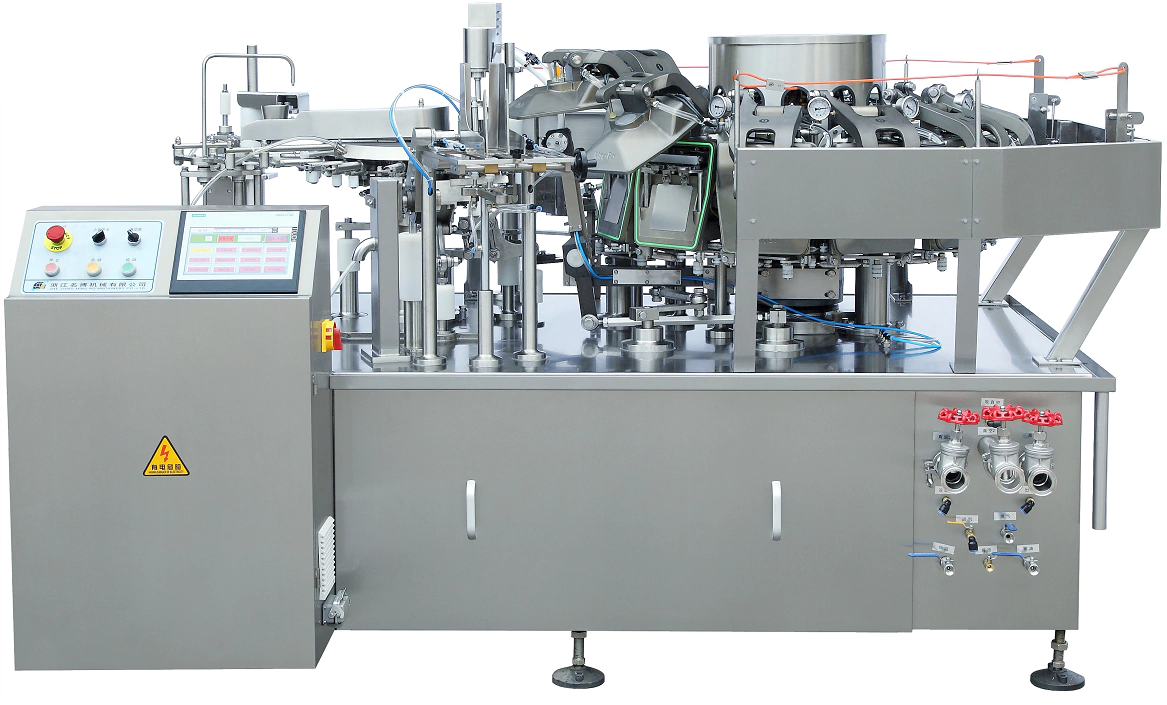

Automatic Frozen Food Vacuum Doypack Machine Fish Ball Shrimp Ball Pouch Packing Machine

Application

automatic frozen food vacuum doypack machine capable of packing different kinds of frozen food products like meat ball, fish ball, shrimp ball, dumpling, noodles, etc similar products which needs to be packed into vacuum pouches.

Parameters

Features

• PLC control and touch screen operation, the machine can be easily operated and maintained.

• Being high-performance and high-durability, the filling machine rotates intermittently to fill the product easily while vacuum

• machine rotates continuously to enable smooth running

• The width of grippers in filling machine can be adjusted at once by a motor while those in the vacuum chambers are needn’t to

• adjust. The main section of machine are made of stainless steel for excellent durability and hygiene.

• All filling zone and vacuum chambers are washable.

•  Weighing machine and liquid&paste doser can be combined with this machine Status in the vacuum chamber can be checked through

• the transparent plastic vacuum shell lids

Safety

No bag – no filling- no sealing, machine alarm

Bag opening miss- no filling-no sealing, machine alarm

Machine stop or alarm when the air pressure is abnormal

Error position display at the control panel

Control panel locate on the right side top of the machine.

Outside of the machine and all the parts which touch production all made by stainless steel.

There are several safety doors made by aluminum Profile Frame.

The doors are equipped with safety proximity sensors

Machine surface can be washed by water and brushed by cloth

Sample bags
