Application
Vbig volume packaging machine, capable of packing 5kg products, can work with different kinds of dosing system, like sugar, rice, beans, puffed food, patoto chips, coffee bean, crispy rice, jelly, candy, pistachios, vegetable salad, dumplings, glutinous rice balls, chocolate, pet food, hardware items, apple slices, banana chips, frozen food, medicines etc.
Parameters
| Model | QP-420 | QP-520 | QP-730 | QP-900 | QP-1080 | QP-1200 |
| Film Thickness | 0.04-0.12mm | 0.04-0.12mm | 0.04-0.12mm | 0.04-0.12mm | 0.04-0.12mm | 0.04-0.12mm |
| Bag Length | 80-300mm | 80-350mm | 100-500mm | 100-600mm | 100-800mm | 100-1000mm |
| Bag Width | 60-200mm | 100-250mm | 180-350mm | 260-430mm | 290-505mm | 290-580mm |
| Film Roll Diameter | Max.350mm | Max.350mm | Max.350mm | 400mm | 400mm | 400mm |
| Pakaging Rate | 5-60bag/min | 5-60bag/min | 5-60bag/min | 5-60bag/min | 5-60bag/min | 5-60bag/min |
| Film Width | Max.420mm | Max.520mm | Max.720mm | Max.900mm | Max.900mm | Max.1200mm |
Features
- 7inch touch screen, easy operation and multiple language system.
- PLC control system, reliable performance and easy for parameters setting.
- With a memory function for storage 99 sets of parameters, easy to pre-set parameters for different products.
- PID temperature controller, Accurate temperature control for various packing materials.
- Film pulling system controlled by step motor, make film running more smooth.
- Using double servo film-dragging structure, enable bag forming for perfect bag shape.
- Sophisticated sealing set ensures bag sealing and cutting consistency.
- Automatically finish the process of feeding, filling, bag forming, date printing, sealing.
- Food grad stainless steel body material, easy for operation and maintenance.

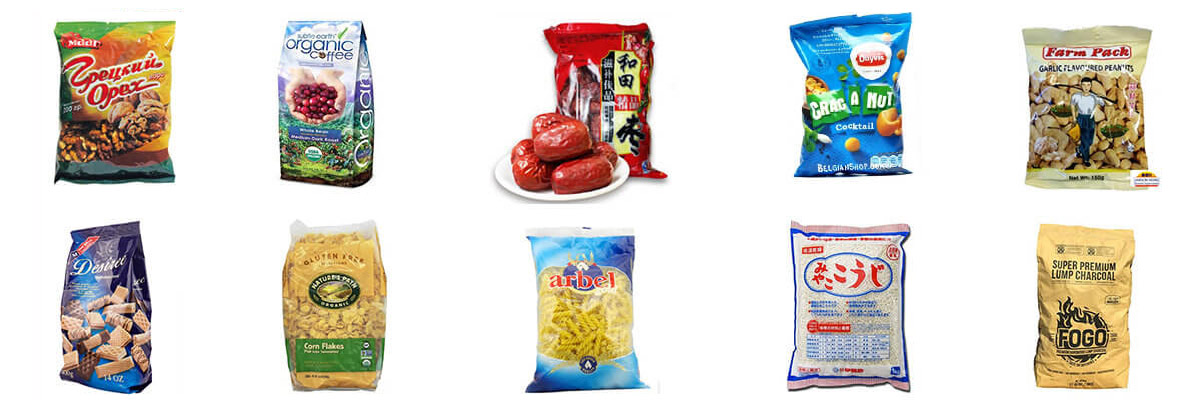

Sample bags
